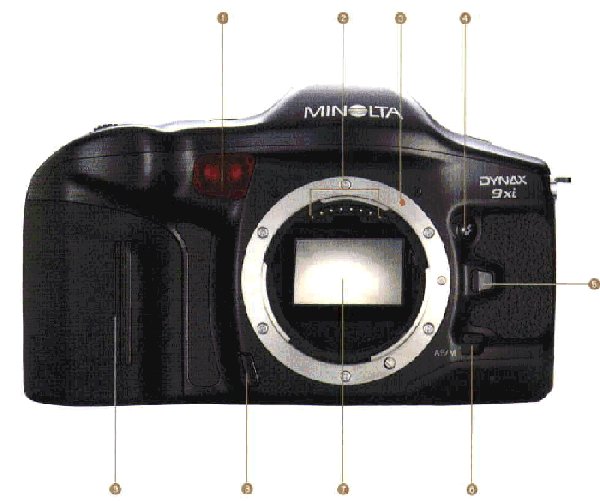

| 1. AF Illuminator/self timer light |
15. AE Lock button |
29. Eyepiece Sensor |
| 2. Lens contacts |
16. Quick button |
30. DX contacts |
| 3. Mounting index |
17. Accessory back contacts |
31. Back Cover release |
| 4. Flash Control Button |
18. Rear control dial |

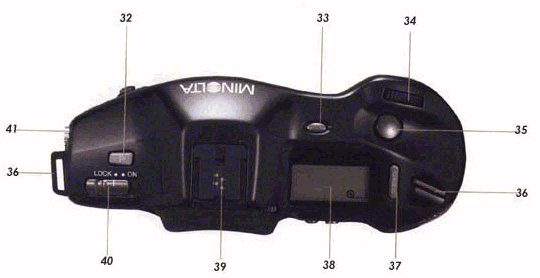

32. Program Reset button |
| 5. Lens release |
19. Function Button |
33. Wide-view mode button |
| 6. Focus mode switch |
20. Card Door |
34. Front Control dial |
| 7. Mirror |
21. Self-timer/drive mode button |
35. Shutter-release button |
| 8. Depth of field preview button |
22. Quick-adjust button |
36. Strap eyelet |
| 9. Grip sensor |
23. Manual/silent rewind button |
37. Card on/off button |

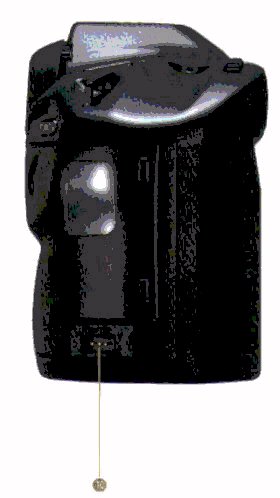

| 10. Remote-control terminal |
24. ISO button |

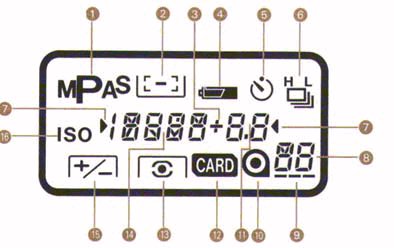

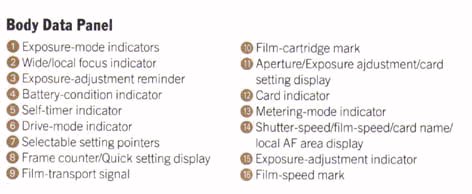

38. Body data panel |

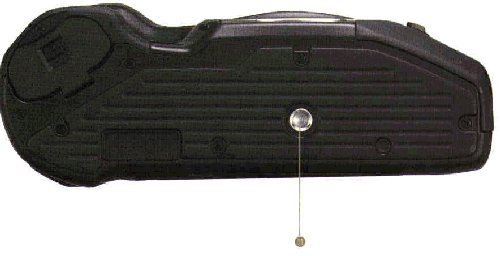

| 11. Tripod socket |
25. Card-adjust button |
39. Accessory shoe |

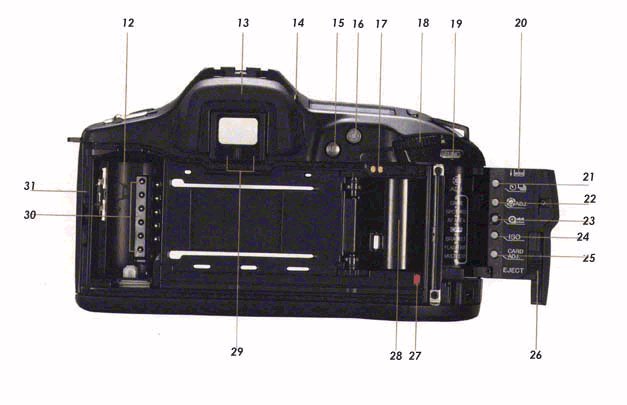

| 12. Film chamber |
26. Card eject slide |
40. Main switch |
| 13. Eyepiece cup |
27. Film leader index |
41. PC terminal |
| 14. Diopter adjustment dial |
28. Sprocket |
- |
